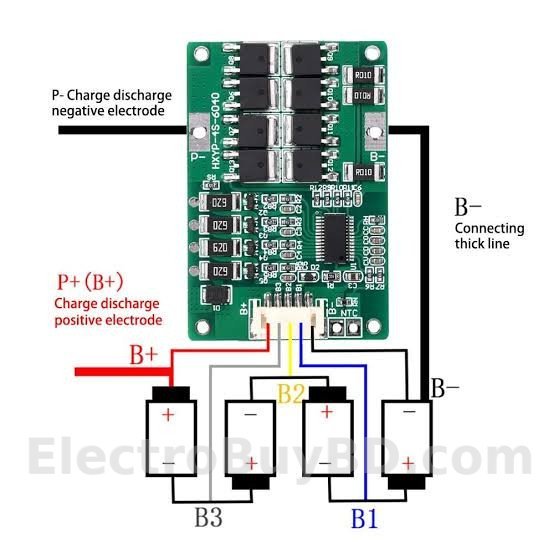

4S 20A LiFePO₄ 6040 BMS Protection Board | 3.2V Cells | 14.4V Battery Pack With Balance Charging BMS
SKU: 4S 20A LiFePO₄ 6040 BMS
Tk 290
Tk 260
সেভ 30 টাকা
স্টকে আছে
স্পেসিফিকেশন:
Specification:
4S 20A LiFePO4 BMS
Model: HXYP-4S-6040
Continuous working current: 18A
Instantaneous current: 30A
Charging voltage: 14.4V – 15V
Charging current: 1A – 10A
Overcharge voltage: 3.65 \0.025V
Overcharge release voltage: 3.55 \pm 0.05V
Over-discharge voltage: 2.35 \pm 0.08V$
Over-discharge release voltage: 2.55 \pm 0.1V
Balance starting voltage: 3.405 \pm 0.05V
Size: 60mm * 40mm * 3.6mm
4S 20A LiFePO4 BMS
Model: HXYP-4S-6040
Continuous working current: 18A
Instantaneous current: 30A
Charging voltage: 14.4V – 15V
Charging current: 1A – 10A
Overcharge voltage: 3.65 \0.025V
Overcharge release voltage: 3.55 \pm 0.05V
Over-discharge voltage: 2.35 \pm 0.08V$
Over-discharge release voltage: 2.55 \pm 0.1V
Balance starting voltage: 3.405 \pm 0.05V
Size: 60mm * 40mm * 3.6mm
