BMS 8S 24V LiFePo4 30A Battery Protection Board With Balance – Short Circuit, Overcharge & Overdischarge Protection S0313

Specification:



Battery Type: LiFePo4 (Lithium Iron Phosphate)
Configuration: 8S (8 cells in series) – 24V nominal
Continuous Discharge Current: 30A
Charge Voltage: 29.2V (max)
Balance Function: Yes, active cell voltage balancing
Protection Features: Overcharge, overdischarge, short circuit, and overcurrent protection
Operating Temperature: -20°C to +60°C
PCB Size: Approx. 90 × 55 × 10 mm
Weight: Approx. 40g
Applications: E-scooters, e-bikes, solar storage, LiFePo4 battery packs


Description:

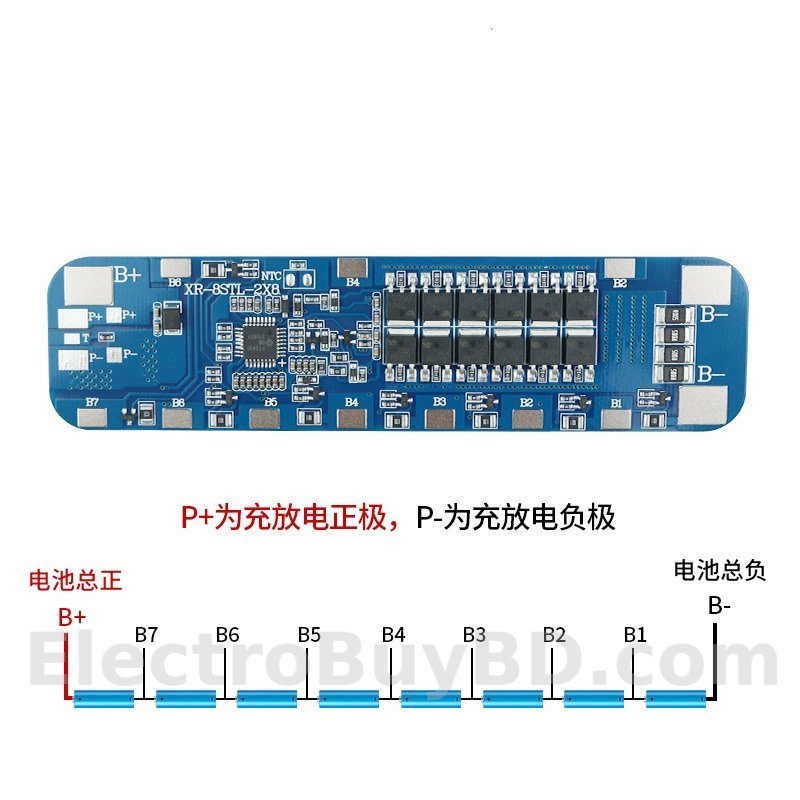

This 8S 24V 30A LiFePo4 BMS (Battery Management System) is designed to protect and manage your lithium iron phosphate battery pack. It supports 8 cells in series and features a balance function to ensure equal voltage across all cells, extending battery life. With overcharge, overdischarge, overcurrent, and short circuit protection, it keeps your battery safe and reliable. Perfect for e-scooters, e-bikes, solar storage systems, and other 24V LiFePo4 battery applications.



Application:



E-scooter battery packs
E-bike power systems
Solar energy storage
24V LiFePo4 UPS systems
DIY lithium battery projects
