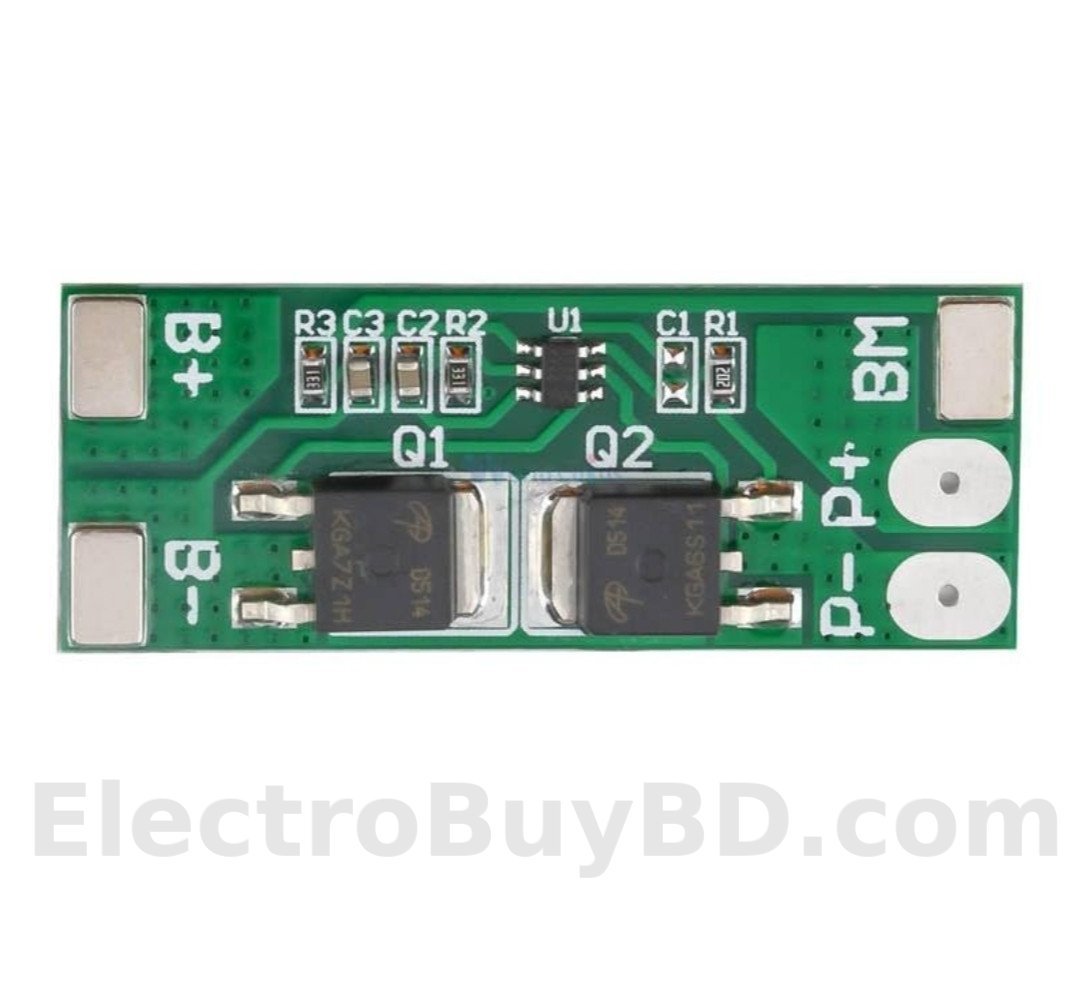

BMS 2S 6.4V 10A LiFePO₄ Battery Protection Board – Charging & Discharging PCB For 2-Cell Packs S0317
SKU: S0317
Tk 90
Tk 70
সেভ 20 টাকা
স্টক নেই
স্পেসিফিকেশন:
Specification:
Battery Type: LiFePO₄ (Lithium Iron Phosphate)
Series Configuration: 2S (2 cells in series)
Nominal Voltage: 6.4V
Continuous Discharge Current: 10A
Charge Voltage: 7.3V – 7.4V
Overcharge Protection Voltage: 3.75V ± 0.05V per cell
Overdischarge Protection Voltage: 2.0V ± 0.05V per cell
Overcurrent Protection: 15A ± 1A
Dimensions: Approx. 45 × 20 × 3 mm
Weight: Approx. 5g
Application: Protection for 2S LiFePO₄ battery packs in solar storage, LED lights, UPS, and DIY power projects
Description:
The 2S 6.4V 10A LiFePO₄ BMS is designed to protect and extend the life of 2-cell lithium iron phosphate battery packs. It provides essential protections against overcharge, overdischarge, overcurrent, and short circuit, ensuring safe charging and discharging. Ideal for use in portable power devices, solar storage systems, LED lighting, and custom battery projects, this compact and lightweight board delivers reliable performance for LiFePO₄ chemistry.
Application:
Solar energy storage batteries
LED lighting systems
Portable power banks
UPS backup battery packs
DIY LiFePO₄ projects
