9V Brushless Fan Driver Circuit 3.7V To 9V 3 Gear
SKU: 9V Brushless Fan Driver Circuit
Tk 130
Tk 110
āĻ¸ā§āĻ 20 āĻāĻžāĻāĻž
āĻ¸ā§āĻāĻ āĻ¨ā§āĻ
āĻ¸ā§āĻĒā§āĻ¸āĻŋāĻĢāĻŋāĻā§āĻļāĻ¨:
Specifications

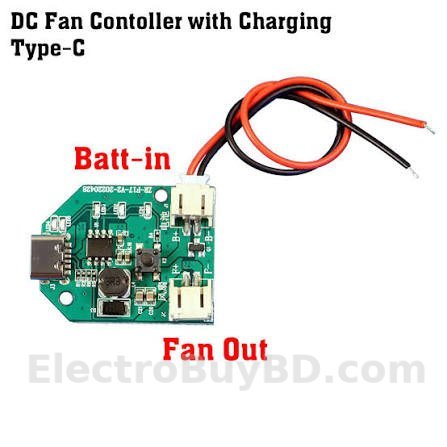

Type-C Fan Control Board is the main speed controller unit of this setup.
Product Name: Type-C Fan Control Board / 3 Speed Boost Module
PCB Model Number: ZR-F17-V2-20220428
Input Interface Port: Type-C USB Port
Compatible Battery Supply: 3.7V Lithium Battery (Connected via B+ and B- terminals)
Speed Voltage Levels: 3 Speed Levels (Red Light = 5V, Green Light = 7V, Blue Light = 9V)
Status Indicator LEDs: LED4 (Green = Fully Charged), LED5 (Red = Charging & Motor Work)
Hardware Circuit Version: Inductive Boost Version
Control Interface Type: Integrated Single Key Switch/Shift Key
PCB Module Width: 35.6mm (1.40 Inches)
PCB Module Height: 27mm (1.07 Inches)
Package Included Accessories: 1 Piece Speed Controller Board + 1 Piece Connecting Terminal Cable Wire Set
Quantity: 1 Set
Type-C Fan Control Board is the main speed controller unit of this setup.
Product Name: Type-C Fan Control Board / 3 Speed Boost Module
PCB Model Number: ZR-F17-V2-20220428
Input Interface Port: Type-C USB Port
Compatible Battery Supply: 3.7V Lithium Battery (Connected via B+ and B- terminals)
Speed Voltage Levels: 3 Speed Levels (Red Light = 5V, Green Light = 7V, Blue Light = 9V)
Status Indicator LEDs: LED4 (Green = Fully Charged), LED5 (Red = Charging & Motor Work)
Hardware Circuit Version: Inductive Boost Version
Control Interface Type: Integrated Single Key Switch/Shift Key
PCB Module Width: 35.6mm (1.40 Inches)
PCB Module Height: 27mm (1.07 Inches)
Package Included Accessories: 1 Piece Speed Controller Board + 1 Piece Connecting Terminal Cable Wire Set
Quantity: 1 Set
